Jama Connect User Guide

Enable Live Trace Explorer for creators (organization and project admins)

Organization or project admins must enable the Live Trace Explorer feature for users with a creator license. Once this setting is enabled, users with a creator license can access Live Trace Explorer from the Project menu. From there, they can view and edit saved diagrams within the project.

Important considerations
  • This setting is disabled by default.

  • Organization admins must enable the Live Trace Explorer feature before it appears in projects and as an option in Admin Project settings.

  • Users might be able to see the names of item types and containers in a project even if they have limited access to that project.

To enable Live Trace Explorer for creators:

  1. From the Jama Connect header, select Admin > Project.

  2. In the project tree, select the project where you want to enable the Live Trace Explorer feature, then select the Settings tab.

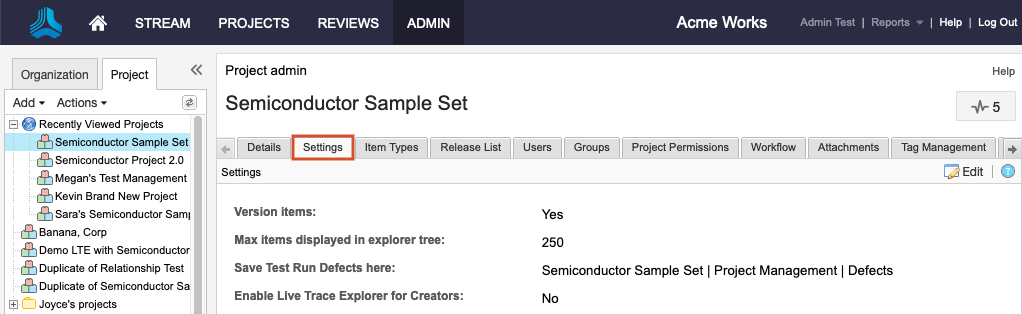

    The details panel for the selected item in the project tree shows that the Settings tab selected.
  3. Select Edit, then select Enable Live Trace Explorer for Creators.

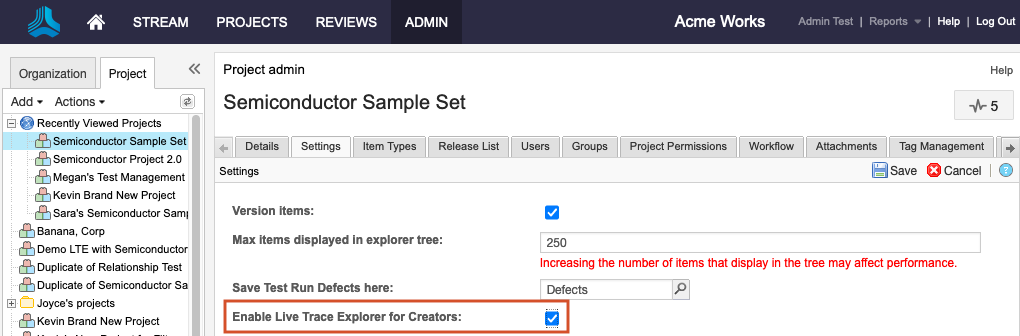

    The details panel for the selected project shows Enable Live Trace Explorer for Creators is selected and a note has been added.
  4. Select Save.

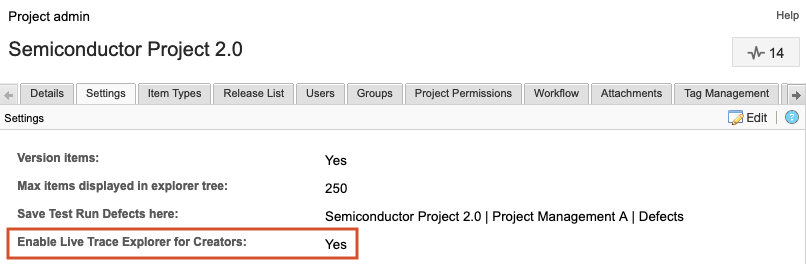

The field Enable Live Trace Explorer for Creators changes to Yes.

The details panel for the selected project shows that Live Trace Explorer is enabled for users with Creator licenses.

Now, users with a creator license see Go to Live Trace Explorer when they select an item in their project tree. They can now also view and edit saved diagrams from this project.

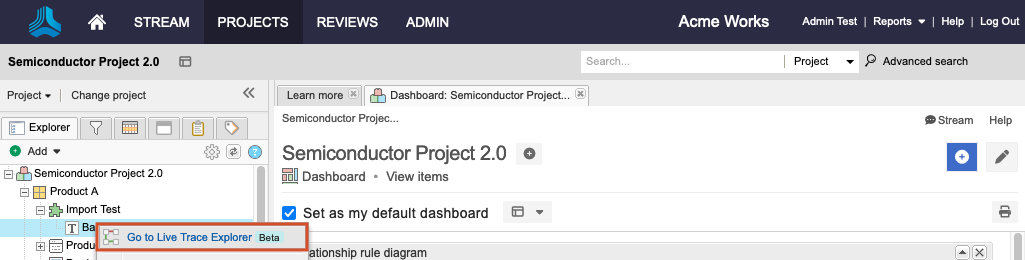

The selected project displays the Go to Live Trace Explorer action.
